Deepview 24
In 2018 & 2019 we worked with Triton Submarines, based in the USA, on the analysis of their DeepView 24 tourist submarine design.
The work included modelling the full pressure hull assembly including the rubber seals (modelled using a hyper-elastic Monney-Rivlin material model) and the bolted assemblies for the main hull assembly rods, viewport seating rings, and conning tower assembly.
Non-linear material and geometry was employed to undertake assembly analysis - with the effects of bolt pre-loads being assessed, followed by dive cases, buckling collapse analysis, and impact analysis.
Images below are reproduced with the kind permission of Triton Submarines
In 2018 & 2019 we worked with Triton Submarines, based in the USA, on the analysis of their DeepView 24 tourist submarine design.
The work included modelling the full pressure hull assembly including the rubber seals (modelled using a hyper-elastic Monney-Rivlin material model) and the bolted assemblies for the main hull assembly rods, viewport seating rings, and conning tower assembly.
Non-linear material and geometry was employed to undertake assembly analysis - with the effects of bolt pre-loads being assessed, followed by dive cases, buckling collapse analysis, and impact analysis.
Images below are reproduced with the kind permission of Triton Submarines

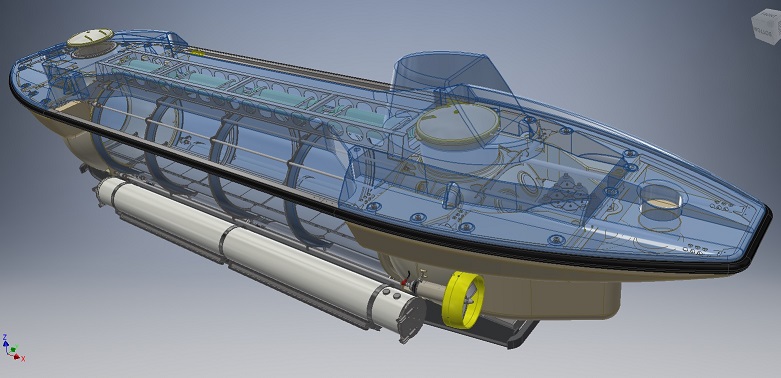

View showing the Assembly

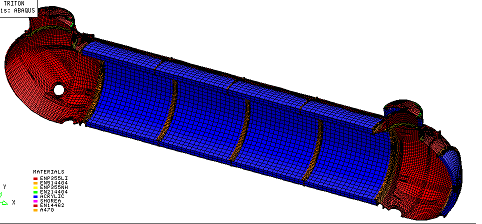

Overall Model Assembly

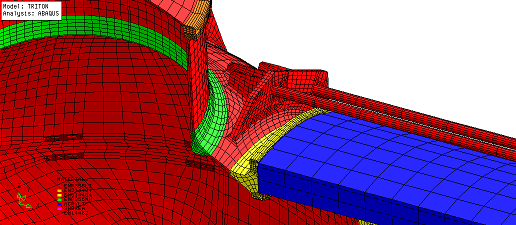

Zoom on Aft Assembly

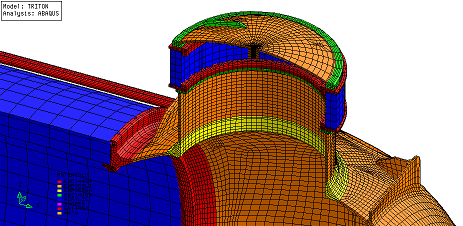

Zoom on Forward Assembly

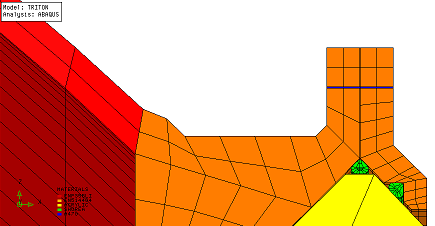

Zoom on Acrylic Seating Ring Assembly

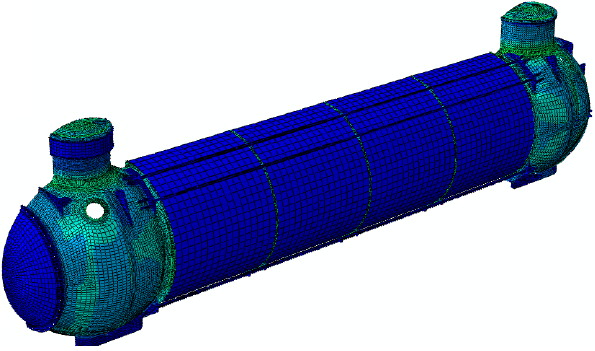

Von Mises Stresses at 2.4 x Nominal Dive Pressure

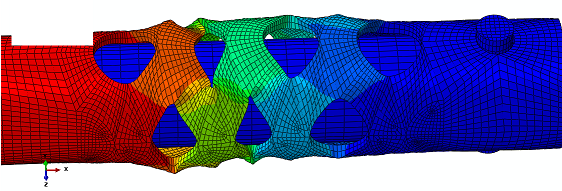

Collision Strut Deformation
